Working pressure: 16, 25, 40 and 80 bars.
Full automatic without need of maintenance.
Suitable for automatic discharge of condense water in many occasions and automatic irrigation system.
Various voltages are available for selection.
Interval time and working time adjustable, with manual testing switch.
Connection port: 1/4, 3/8 and 1/2 inches.                                                                                                                  NBR and FPM for wide range application.                                                                                                             Direct-acting, big orifice, to avoid blockade.                                                                                                             Filter ball valve can be installed before drainer to avoid block.
Certifications: CE and UL

Parameters

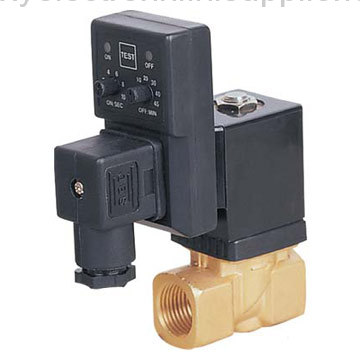

SOLENOID DRAIN VALVE have Model CS-720 CS-3000 CS-711
Valve style two-position two-way direct acting solenoid valve
Connection port 1/4",3/8",1/2"(female) 1/8",1/4"(female)
Working pressure 16Bar,25Bar,40Bar,801Bar 16BAR
On Time 0.5-10sec 0.5-99sec 2sec
Off Time 0.5-45min 0.5-99min 0.5-120min
Ambient Temperature -20℃-60℃
Highest Medium Temperature 90℃
Valve body Brass,stainless steel
Orifice 1.9-4.5mm 2mm
Insulation, protect class F Class, IP65(with plug)
Voltage 24-240V DC/AC 50/60HZ±10%
Mounting Any Place
