normal open with botton valve seat from China manufacturer

Payment Terms:	T/T
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

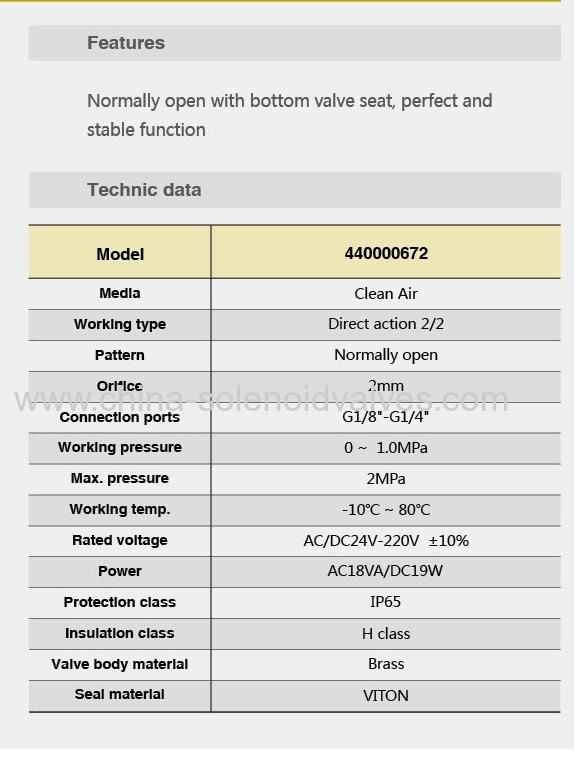

Model No.: 440000672

Power: AC18VA/DC 19W

Temperature of Media: Medium Temperature

media: clean air

pattern: Normally Open

connection port: G1/4-G1/8

Voltage: AC/DC24-220V

seal: Viton

Means of Transport: Ocean,Land,Air

Material: Brass

Brand Name: RFS

working type: direct action 2/2

orifice: 2mm

working pressure: 0-10BAR

valve body: brass

Normal open valve with pin-lift design,reliable and good antifouling function
Be able to endure high and low temp
Can be used for air,water,steam

Item No.:440000672
Orifice: 2mm
Port size: G1/8 or G1/4
Pressure: 0-10bar
Working temperature:-20℃~80℃ or -40℃~180℃
Voltage: AC24V-380V or DC12V-110V
Body material: brass
Seal: viton
