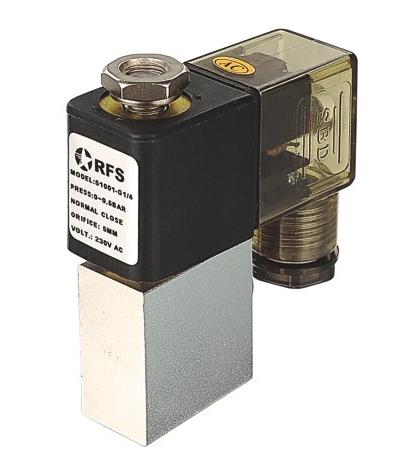

low pressure valve for air and gas

Payment Terms: T/T
Place of Origin: Zhejiang, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: RV51001
Production Capacity: over 10000pcs
Delivery Date: 15 days
Pressure: Medium Pressure
Temperature of Media: Medium Temperature
media: clean air or gas
pattern: Normal close
connection port: G1/8, G1/4
valve body: aluminum
Voltage: AC24V-220V
Means of Transport: Ocean,Land,Air
Packing: BOX/CARTON
Power: Solenoid
Material: Others
Brand Name: RFS
working type: direct action 2/2
orifice: 1mm/5mm
Working pressure: 0-8BAR/0-150mbar
Seal: NBR/FKM
power: 6VA

compact design with right angle inlet and outlet ports ,low pressure for gas burner application ,small power consumptioin

Type: two way two position
Orifice: 1 mm or 5 mm
Port size: G1/8 or G1/4
Working temp.:-20 ℃~80℃
Voltage: AC24V-220V or DC12V~48V
Body material: aluminum
Seal: VITON
